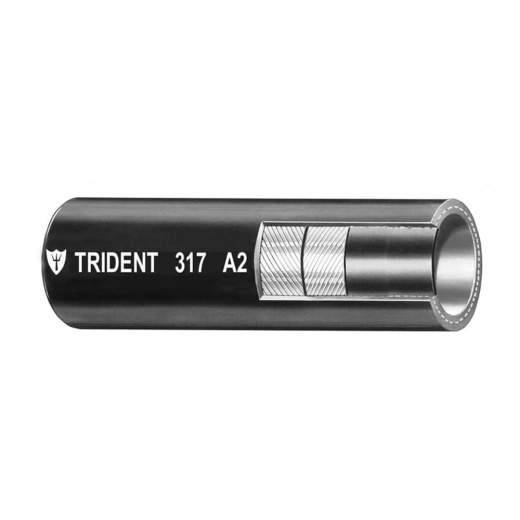

5/8” A2 Fuel & Vent Line Hose - Black - Sold by the Foot
Trident 5/8” ID A2 Fuel Hose is a gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends).
Features:
Application:
Construction:
Specifications:
*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted & CE certified.
Sold by the foot This hose is built with the best fuel, fire, and age-resistant formulation Provides extraordinary resistance to aging, fire, heat, cold, and the ozone Also, provides excellent bend-abilityMarine Fuel Hose for vent and diesel distribution For all marine fuels including gasoline, alcohol blends, diesel and bio-dieselTube: NBRCover: NBR/PVC BlendReinforcement: Polyester 2 spiralTemperature Range: -20°F to 212°F (-28ºC to 100ºC)Length: Sold by the FootInner Diameter: (inch) 0.625" / (mm) 15.9Outer Diameter: (inch) 0.960" / (mm) 24.4Burst Pressure: (psi) 200 / (mpa) 1.38Working Pressure: (psi) 50 / (mpa) 0.34Bend Radius: (inch) 3" / (mm) 76.2Weight: (Lb./100ft.) 25.84 / (Kg/m) 11.72
