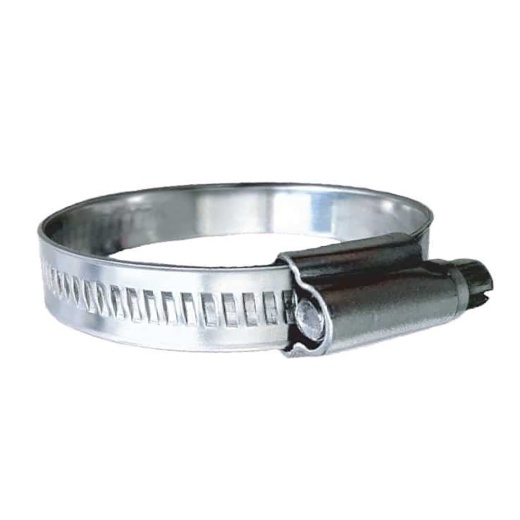

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-3/4" – 2-1/4") Clamping Range - 10-Pack - SAE Size 28
Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel “HD NON-PERF” Worm Gear Hose Clamp. The 11.7 mm (0.46”) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63”) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.
Features:
Recommendations:
Construction:
Specifications:
The screw head is 7mmLong service life and safety for most general-purpose hose applications and connectionsMeasure hose O.D. before selecting clamp size for proper fitDouble clamp on each hose end for critical applicationsConsider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9mm thickScrew Drive: 316 Stainless Steel 7.0 mm screw headSAE Size: 28Hose Inner Diameter: (inch) 1-1/2" - 1-5/8" Clamping Range: (inch) 1-3/4"– 2-1/4" / (mm) 44-56Recommended Torque Inch lbs: 45-60
