Trident Marine 316 Ss Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/4" – 1-3/4") Clamping Range - 10-Pack - Sae Size 20

SKU: CWR-98832
Out of stock
Out of stock
Unit Price
US$ 63.93
US$ 70.60
Out of stock

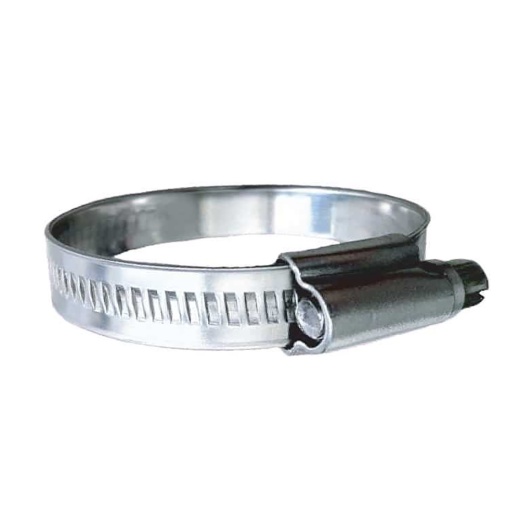

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/4" – 1-3/4") Clamping Range - 10-Pack - SAE Size 20

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel “HD NON-PERF” Worm Gear Hose Clamp. The 11.7 mm (0.46”) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63”) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.





  • The screw head is 7mm
  • Long service life and safety for most general-purpose hose applications and connections
  • Measure hose O.D. before selecting clamp size for proper fit
  • Double clamp on each hose end for critical applications
  • Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)
  • Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9mm thick
  • Screw Drive: 316 Stainless Steel 7.0 mm screw head
  • SAE Size: 20
  • Hose Inner Diameter: (inch) 1" - 1-1/4"
  • Clamping Range: (inch) 1-1/4"– 1-3/4"/ (mm) 32-44
  • Recommended Torque Inch lbs: 35-45
  • Shipping specs
    Shipping weight
    0.5 lbs
    Shipping dimensions
    3" x 3" x 3"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
