Em-Trak B921 Class B Ais Transceiver - 2W Cstdma

SKU: CWR-98701
Unit Price
Quantity
Subtotal
US$ 1,022.64
US$ 1,022.64
US$ 1,016.501%
2
US$ 1,012.911%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Antenna Included
Yes
Display Included
No
AIS Class
B
GPS Included
Yes
Function
Receive/Transmit
Barcode
672975210502
Description

B921 Class B AIS Transceiver - 2W CSTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

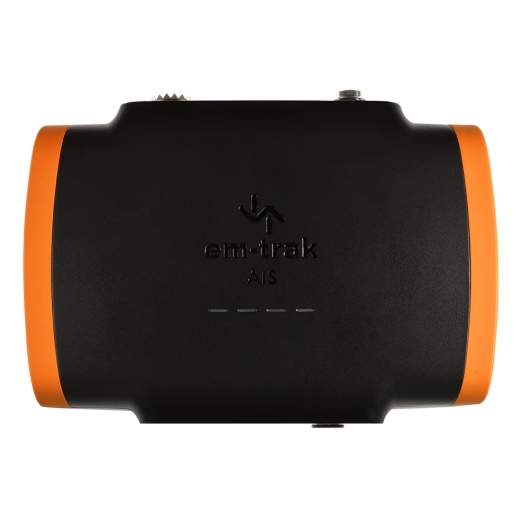

The B921 is a 2W CSTDMA Class B AIS transceiver, delivering em-trak's advanced performance and reliability through next-gen technology. Small and durable, this trusted transceiver processes all AIS transmissions in real-time, even at the range limit, so you always have the complete picture and the time to respond.

em-trak's intelligent connectivity means the B921 can be connected to any chart-plotter and comes equipped with integrated GPS technology and best-in-class, ultra-low power consumption. Installation is also simplified with our unique FLEXI-FIT® bracket system to have you up and running in no time at all.

Features:

Physical & Environmental Specifications:

Electrical Specifications:

Connectors:

Data Interfaces:

Standards Compliance:

GNSS:

VHF Transceiver:

User Interface:

In the Box:

  • Certified AIS Class B – 2W CSTDMA
  • Global certification - USCG / FCC / Canada / Europe
  • SRT-AIS™ Transceiver Engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient, and secure installation
  • Internal high-performance GPS receiver and antenna (external antenna optional)
  • Water, pressure spray, and damp proof (IPx6, IPx7 certified)
  • Protected from vibration, shock, and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • NMEA 0183 & NMEA 2000
  • Automated health and performance monitoring
  • Silent mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection
  • Size (H x W x D): 150 x 115 x 45mm
  • Weight: 375kg
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx7
  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V - 31.2V DC
  • Average current (at 12V): 135mA
  • Peak current: 2A
  • Average power consumption (at 12V): 1.6W
  • Galvanic isolation: NMEA 0183, NMEA 2000, VHF antenna port
  • VHF antenna: SO-239
  • GNSS: TNC
  • Power: 12-way circular multipole
  • NMEA 2000: 5-way Micro-C connector
  • USB: USB Micro-B
  • NMEA 0183: 2 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • USB: PC virtual com port for NMEA 0183 data
  • AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0
  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: Internal or optional external antenna
  • Time to first fix from the cold start: 26s
  • VDL access scheme: CSTDMA
  • Operating frequency: 156.025MHz - 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 2 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 2W (+33dBm)
  • Indicators: Power, transmit timeout, error, silent mode
  • 1 x AIS transceiver
  • 1 x Power and data cable (2M)
  • 1 x FLEXI-FIT™ mounting bracket
  • Complete with screws & optional fixing tape
  • Shipping specs
    Shipping weight
    1.55 lbs
    Shipping dimensions
    7" x 6" x 8"
