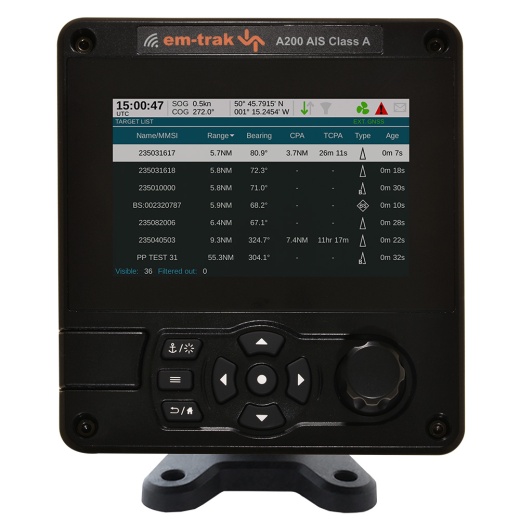

A200 Class A AIS Transceiver
The A200 Class A is both SOLAS and Inland Waterway certified and offers superior performance through its advanced, next-gen technology. The A200 has been engineered for even the harshest marine environments, undergoing extensive testing by independent experts to ensure it is waterproof and unaffected by extreme temperatures, shock, and vibration so you don't need to worry about reliability issues impacting performance or longevity.
The A200 is easy to install and will seamlessly connect to your ECDIS and other bridge systems. The A200 delivers comprehensive AIS functionality, such as alerts, target filters, vessel information lists, real-time weather, and more.
With its integrated color display, the A200 plays an important role in tracking, collision avoidance, and CPA when vessels are in busy port areas. The combination of advanced performance, trusted reliability and competitive price make the A200 the best-value AIS Class A in the market by far.
Features:
Physical & Environmental Specifications:
Electrical Specifications:
Connectors:
Data Interfaces:
Standards Compliance:
GNSS:
VHF Transceiver:
User Interface:
GNSS Antenna:
In the Box:
IMO SOLAS certified AIS Class AEU Inland Waterway certified ruggedized and impervious to extreme environments – water (IPx6, IPx7), dampness, shock, vibration, and temperaturesHigh performance latest generation GPSSuitable internal or permanent external installationRobust ergonomic button and rotary-knob user interfaces with configurable multi-lingual menu optionsIntegrated high-definition color display with night modeENC chart (C-Map) with configurable AIS target overlaySilent mode – AIS transmissions are stopped, all AIS messages continue to be receivedIntegrated WiFiPilot plug cable and junction box accessory optionsSize (H x W x D): 152 x 165 x 95mmWeight: 1.1kgOperating temperature: -25°C to +55°CStorage temperature: -25°C to +70°CIngress protection: IPx6 and IPx7Supply voltage: 12V or 24V DCSupply voltage range: 9.6V - 31.2V DCAverage current (at 12V): 520mAPeak current: 6AAverage power consumption (at 12V): 6.2WGalvanic isolation: NMEA 0183, NMEA 2000, power supply, VHF antenna portVHF antenna: SO-239GNSS: TNCPower: 2-way circular multipoleNMEA 0183/silent mode/blue sign: 14-way circular multipoleNMEA 0183/alarm relay: 18-way circular multipoleNMEA 2000: 5-way Micro-C connectorNMEA 0183: 3 x input ports, 3 x bi-directional portsNMEA 2000: NMEA 2000 Ed 3.101, LEN=1WiFi: IEEE 802.11 (a/b/g), client mode, and access point mode supported. (5 connections in access point mode)AIS standards: IEC 61993-2 Ed. 3Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013Environmental standards: IEC 60945 Ed. 4Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0NMEA 2000: NMEA 2000 Ed 3.101GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)Channels: 72Internal/external antenna: External onlyTime to first fix from the cold start: 26sVDL access scheme: SOTDMAOperating frequency: 156.025MHz - 162.025MHzChannel bandwidth: 25kHzReceivers/transmitters: 3 x receivers, 1 x transmitterAIS receiver sensitivity (20% PER): -111dBmAIS transmitter power: 12W (+41dBm)Screen: 5-inch 800 x 480 full color LCDButtons: Rotary encoder for selection and entry, 4 menu keys, and 4 direction keysSD card interface: Micro SD card interface for logging and chart cards (not available from em-trak)Size: 85 x 70mmWeight: 470gIngress protection: IPx6 and IPx7Mounting: 1 inch 14 TPI pole mount requiredGNSS systems supported: GPS, GLONASS, Galileo, BeiDou1 x AIS transceiver1 x Power cable1 x Mounting bracket & fixings pack1 x 14 Way data cable1 x Product manual and document pack1 x 18 Way data cable
