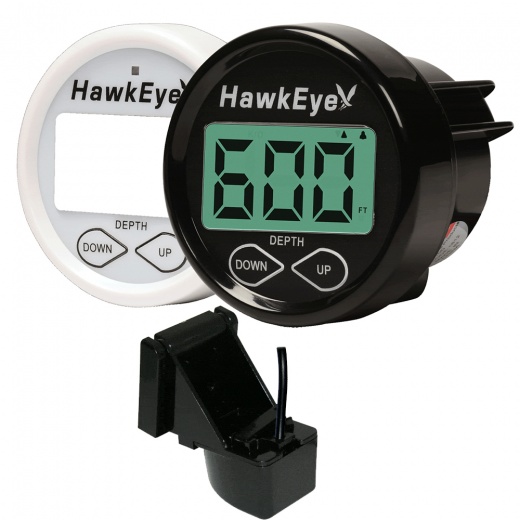

DepthTrax In-Dash Digital Depth Gauge - Transom Mount
The DepthTrax 2B includes advanced sonar, depth alarm, and keel offset capabilities. With updated SONAR algorithms, the DepthTrax 2B reachs new depths. Able to reach depths of 600 ft and tuned for high speed performance, the DepthTrax 2B reaches deeper and performs faster than any depth finder.
The DepthTrax 2B delivers a combination of performance and affordability unrivaled in any other depth sounder.
Features:
Technical Specifications:
In the Box:
*Sold as an Individual
Algorithmic programming significantly reduces false readings and produces unmatched precisionEasyTouch programming allows one-touch access to the user settingsUser programmable keel offset automatically adjusts depth readings for vessels’ draft requirementsSelectable Imperial or Metric readoutDual Upper and Lower depth alarms can be set throughout the full depth range3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm mutingDisplays air & water temperature in °F or °CAutomatic memory retention of all user settingsRemovable face system - includes White & Black faceplates and White/Black trim ringsNo glare, polarized LCD icon display with storage sun cover SoftGlow™ backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewingGauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm)Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm)Gauge Cut-out Size - 2"Operating Temperature - 0 to 160° F (-18 to 71°C)Depth Range - 2.5' to 600' (.7 to 180 M)Transducer Type - Transom MountTransducer Frequency - 200kHzTransducer Beam Angle - 14°Transducer Cable Length - 30' (9 M)Power Requirement - 12 - 14 VDCGaugeBezel/Faceplate - Black and WhiteDisplay coverMounting hardwareTransducer - transom mount w/30' cableInstruction manual
