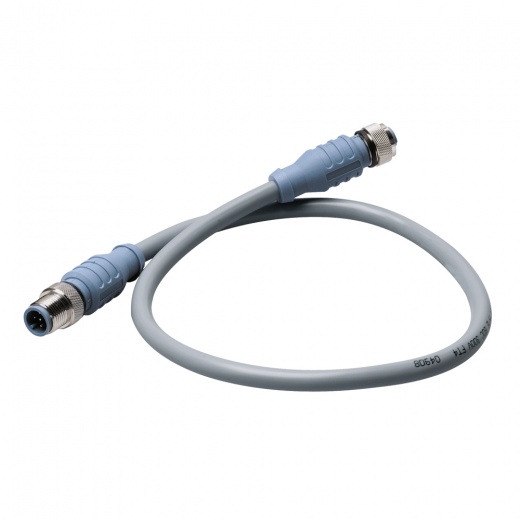

Maretron Micro Double-Ended Cordset - 2 Meter

SKU: CWR-33357
Unit Price
Quantity
Subtotal
US$ 40.95
US$ 40.95
US$ 40.701%
2
US$ 40.561%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Maretron
Cable Length (Feet)
6'
Barcode
873804001524
Description

Micro Double-Ended Cordset - 2 Meter

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59 Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 VCable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
    • Shipping specs
    Weight
    0.35 lbs
    Dimensions
    7" x 7" x 1"
    Shipping weight
    0.35 lbs
    Shipping dimensions
    7" x 1" x 7"
    Shipping from
    This product is shipped from our supplier's warehouse in , NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
