Wichard Double Folding Pad Eye - 10Mm Diameter - 25/64"

SKU: CWR-97697
Out of stock
Out of stock
Unit Price
Quantity
US$ 258.19
US$ 277.19
Out of stock
Notify me when product is in stock
Options
Brand
Wichard Marine
Description

Double Folding Pad Eye - 10mm Diameter - 25/64"

Features:

Applications:

Specifications:

Dimensions:

Caption:

*Sold as an Individual

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations
  • For any fastening/attachment application
  • Allows to attach several shrouds
  • Materials: 316L stainless steel grade
  • Working load: (lb) 10050 / (kg) 4560
  • Breaking load: (lb) 19840 / (kg) 9000
  • Weight: (lb) 1.089 / (g) 494

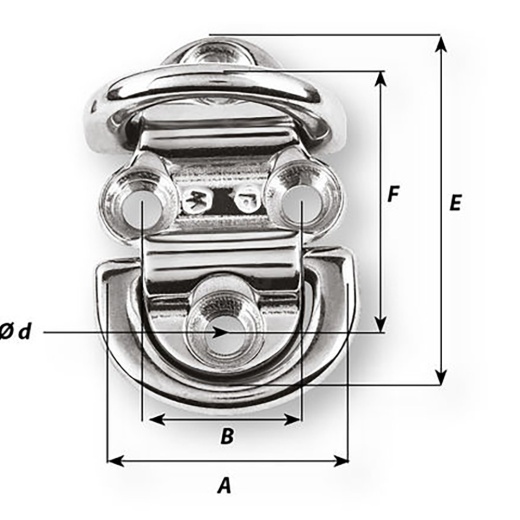

  • A: (inch) 2 61/64" / (mm) 75
  • B: (inch) 1 49/64" / (mm) 45
  • C: (inch) 29/32" / (mm) 23
  • d diameter: (inch) 13/32" / (mm) 10.5
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 4 3/32" / (mm) 104
  • F: (inch) 3 5/64" / (mm) 78
  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
