Name: Wichard Self-Locking Allen Head Pin D Shackle - 6Mm Diameter - 1/4"
Brand: Wichard Marine
SKU: CWR-97638
Price: 32.45 USD
Availability: OutOfStock

Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"

Features:

Applications:

Specifications:

Dimensions:

Caption:

*Sold as an Individual

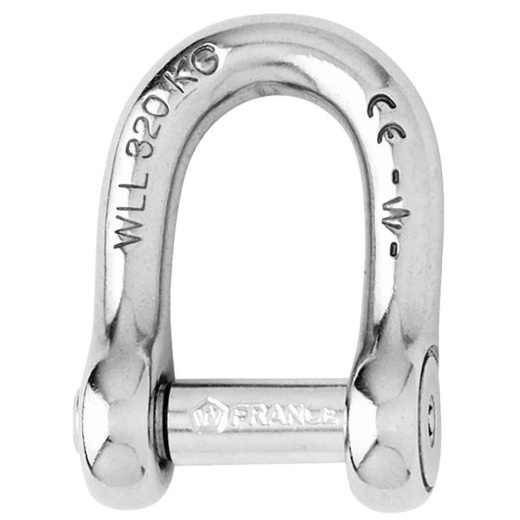

Self-locking shackle with allen head pin D forged in grade 316L stainless steel

The pin is locked into one of the indentations

The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging

No risks of loosening due to vibrations

Outstanding working and breaking loads

WLL: only for industrial applications (lifting i.e…)

CE marking

Ideal to link chains and anchor

On the halyard, avoids damaging the sails

To be used when the clutter is reduced

Materials: 316 stainless steel grade

Working load: (lb) 1320 / (kg) 600

WLL: (lb) 700 / (kg) 320

Breaking load: (lb) 3520 / (kg) 1600

Weight: (lb) 0.049 / (g) 22

A: (inch) 3/4" / (mm) 19

B: (inch) 15/32" / (mm) 12

C: (inch) 15/64" / (mm) 6

D: (inch) 15/32" / (mm) 12

D diameter: (inch) 15/64" / (mm) 6

Working Load (WL): For nautical applications

Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5
