Wichard Not Self-Locking Bow Shackle - 20Mm Diameter - 25/32"

SKU: CWR-97634
Out of stock
Out of stock
Unit Price
Quantity
US$ 384.36
US$ 412.66
Out of stock
Notify me when product is in stock
Options
Brand
Wichard Marine
Description

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Features:

Applications:

Specifications:

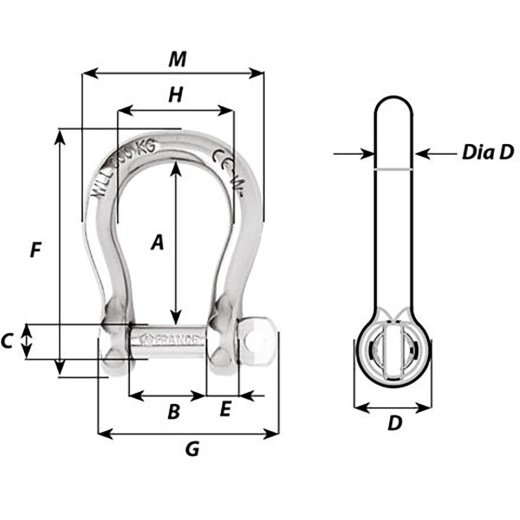

Dimensions:

Caption:

*Sold as an Individual

  • Bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part # 01248 is not self-locking
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Materials: 316 stainless steel grade
  • Working load: (lb) 9920 / (kg) 4500
  • WLL: (lb) 6610 / (kg) 3000
  • Breaking load: (lb) 33060 / (kg) 15000
  • Weight: (lb) 2.328 / (kg) 1.056
  • A: (inch) 3 5/32" / (mm) 80
  • B: (inch) 1 37/64" / (mm) 40
  • C: (inch) 25/32" / (mm) 20
  • D: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 25/32" / (mm) 20
  • E: (inch) 45/64" / (mm) 18
  • M: (inch) 3 15/16" / (mm) 100
  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5
    • Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
