Wichard Self-Locking D Shackle - 12Mm Diameter - 15/32"

SKU: CWR-97628
Out of stock
Out of stock
Unit Price
Quantity
US$ 87.20
US$ 89.04
Out of stock
Notify me when product is in stock
Options
Brand
Wichard Marine
Description

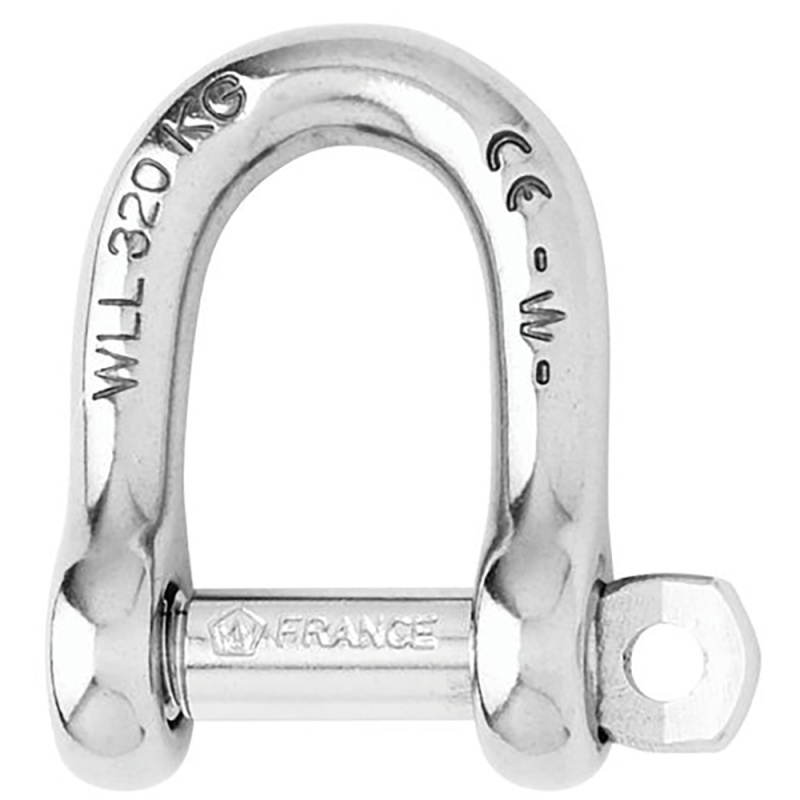

Self-Locking D Shackle - 12mm Diameter - 15/32"

Features:

Applications:

Specifications:

Dimensions:

Caption:

*Sold as an Individual

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Standard applications of the shackle
  • Attachment applications: blocks, head
  • Materials: 316 stainless steel grade
  • Working load: (lb) 4580 / (kg) 2080
  • WLL: (lb) 2640 / 1200 (kg)
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.425 / (g) 193
  • A: (inch) 1-21/32" / (mm) 42
  • B: (inch) 1-1/16" / (mm) 27
  • C: (inch) 15/32" / (mm) 12
  • D: (inch) 15/16" / (mm) 24
  • D diameter: (inch) 15/32" / (mm) 12
  • E: (inch) 7/16" / (mm) 11
  • F: (inch) 2-7/8" / (mm) 73
  • G: (inch) 2-7/16" / (mm) 62
  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
