Taco 13-1/8" X 24" Electric Seat Slide

SKU: CWR-97118
Unit Price
Quantity
Subtotal
US$ 1,435.22
US$ 1,435.22
US$ 1,426.611%
2
US$ 1,421.571%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Barcode
631098090941
Description

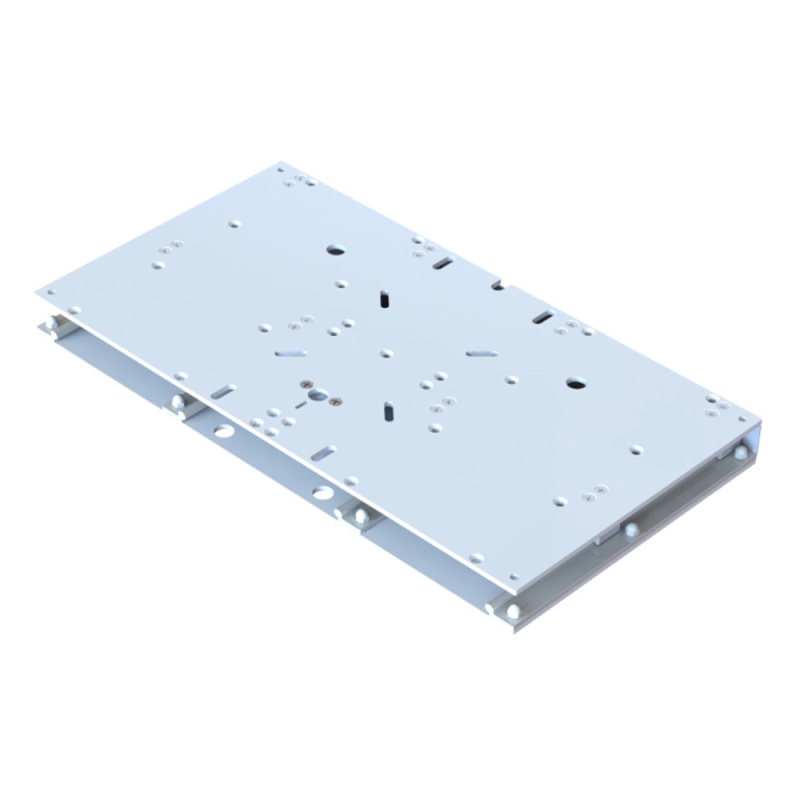

13-1/8" x 24" Electric Seat Slide

Perfect for seats and benches 29" to 40" wide, this 13-1/8" X 24" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.

Features:

Specifications:

  • Ideal for seats 29" to 40"
  • Features 5" of travel distance (stroke length)
  • Water-resistant IP66 rating
  • Meets H31 testing standards for seat applications
  • Precision-machined 6000-series aluminum chassis
  • Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight, and shock resistant
  • Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
  • Quite an operation ≤ 58dB
  • Electric actuator
  • Self-locking at any given position (at rated loads)
  • No racking in any direction due to precision tolerances in the track/glide system
  • All electric seat slides and components are acid-etched clear anodized
  • Made in the USA
  • 3-year limited warranty
  • 12V DC 9 AMP Max current
  • Max load 3500N
  • Push and pull force of 1500N
  • IP66 Rated
  • Speed 13.5 mm/Sec @ 1500N
  • Shipping specs
    Shipping weight
    23.9 lbs
    Shipping dimensions
    14" x 4" x 25"
