Em-Trak B951 Class B Ais Transceiver - 5W Sotdma

SKU: CWR-98705
Unit Price
Quantity
Subtotal
US$ 1,228.80
US$ 1,228.80
US$ 1,221.431%
2
US$ 1,217.111%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Antenna Included
Yes
Display Included
No
AIS Class
B
GPS Included
Yes
Function
Receive/Transmit
Barcode
672975210540
Description

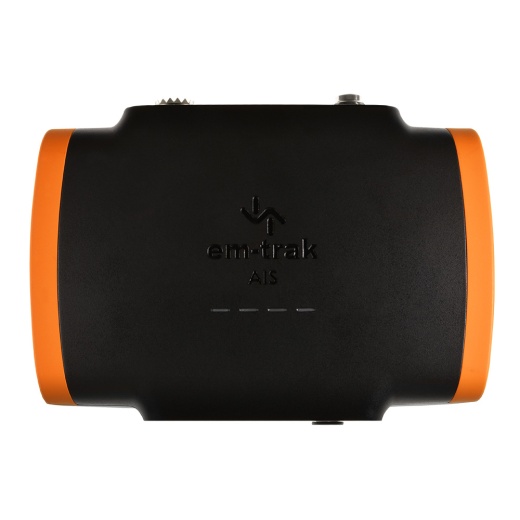

B951 Class B AIS Transceiver - 5W SOTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The B951 is a high-power (5W SOTDMA) Class B transceiver, delivering advanced performance and ultimate reliability through em-trak's next-gen technology. Small and durable, this trusted transceiver processes all AIS transmissions in real-time, with increased range and transmission priority so you always have the complete picture and the time to respond, even in the busiest waters.

em-trak's flexible, intelligent connectivity means the B951 can be paired to any chart-plotter and its next-gen GPS receiver and the antenna are already integrated inside the device to provide best-in-class, ultra-low power consumption, and performance. em-trak's unique FLEXI-FIT® bracket system completes the package and ensures easy installation.

Features:

Physical & Environmental Specifications:

Electrical Specifications:

Connectors:

Data Interfaces:

Standards Compliance:

GNSS:

VHF Transceiver:

User Interface:

In the Box:

  • Certified AIS Class B – 5W SOTDMA
  • Global certification - USCG / FCC / Canada / Europe
  • SRT-AIS™ Transceiver Engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient, and secure installation
  • Internal high-performance GPS receiver and antenna (external antenna optional)
  • Water, pressure spray, and damp proof (IPx6, IPx7 certified)
  • Protected from vibration, shock, and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • NMEA 0183 & NMEA 2000
  • Automated health and performance monitoring
  • Silent mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection
  • Size (H x W x D): 150 x 115 x 45mm
  • Weight: 375kg
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx7
  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V - 31.2V DC
  • Average current (at 12V): 135mA
  • Peak current: 2.5A
  • Average power consumption (at 12V): 1.6W
  • Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

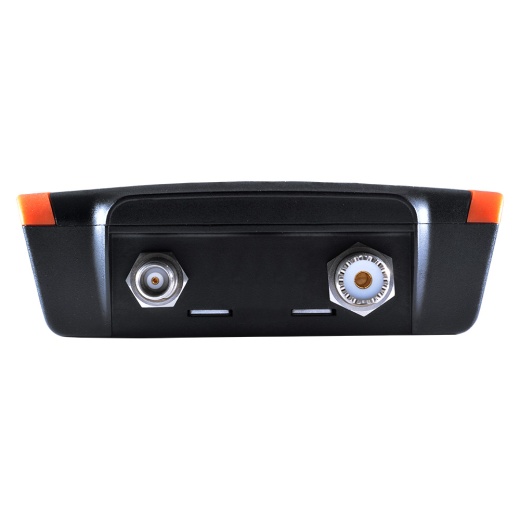

  • VHF antenna: SO-239
  • GNSS: TNC

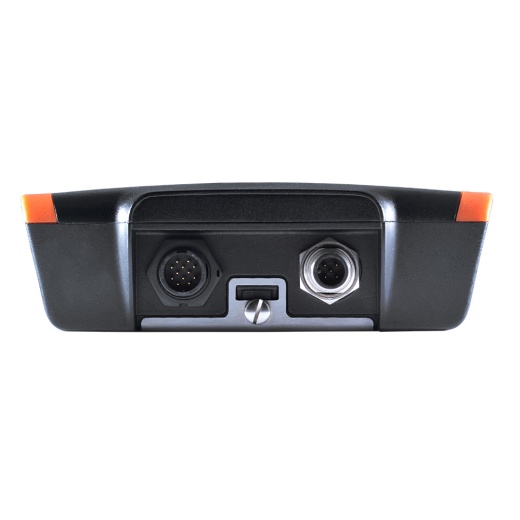

  • Power: 12-way circular multipole
  • NMEA 2000: 5-way Micro-C connector
  • USB: USB Micro-B
  • NMEA 0183: 2 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • USB: PC virtual com port for NMEA 0183 data
  • AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0
  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: Internal or optional external antenna
  • Time to first fix from the cold start: 26s
  • VDL access scheme: SOTDMA
  • Operating frequency: 156.025MHz - 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 2 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 5W (+37dBm)
  • Indicators: Power, transmit timeout, error, silent mode
  • 1 x AIS transceiver
  • 1 x Power and data cable (2M)
  • 1 x FLEXI-FIT™ mounting bracket
  • Complete with screws & optional fixing tape
  • Shipping specs
    Shipping weight
    2 lbs
    Shipping dimensions
    7" x 6" x 7"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
