B922 Class B AIS Transceiver with WiFi & Bluetooth Wireless Connectivity - 2W CSTDMA
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
Click here to download form.

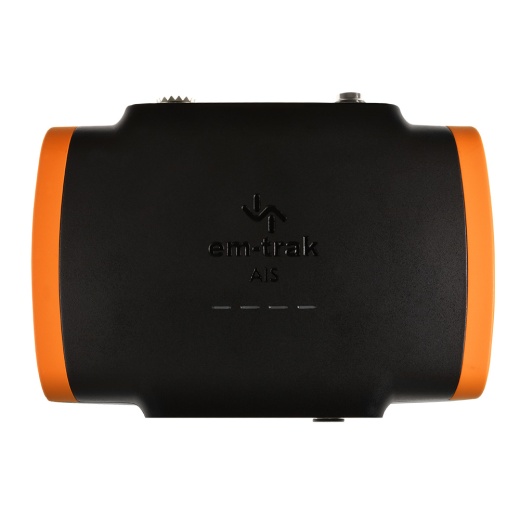

The B922 is a 2W CSTDMA Class B AIS transceiver, offering unmatched performance and ultra-low power consumption through em-trak's advanced technology. Small and lightweight, it combines integrated WiFi & Bluetooth capabilities for seamless wireless connectivity and AIS data streaming, compatible with any mobile device or PC.
Its flexible connectivity means it can be used by up to nine different devices simultaneously, ensuring everyone on board gets the most from your transceiver and related onboard equipment every day. The B922 transceiver also works seamlessly with em-trak's CONNECT-AIS app to make programming, configuration, and device monitoring easier than ever before.
Like all products in the class-leading B900 range, the B922 is engineered to deliver real-time data processing, even at the range limit. It is easy to install with em-trak's unique FLEXI-FIT 'no screw' bracket system, and will operate without maintenance for years to come.
Features:
Physical & Environmental Specifications:
Electrical Specifications:
Connectors:
Data Interfaces:
Standards Compliance:
GNSS:
VHF Transceiver:
User Interface:
In the Box:
Certified AIS Class B – 2W CSTDMAIntegrated WiFi and BluetoothGlobal certification - USCG / FCC / Canada / EuropeSRT-AIS™ Transceiver Engine for superlative proven performanceFLEXI-FIT™ bracket system for easy, convenient, and secure installationInternal high-performance GPS receiver and antenna (external antenna optional)Water, pressure spray, and damp proof (IPx6, IPx7 certified)Protected from vibration, shock, and extreme temperaturesSmall and lightweightUltra-low power consumption – best in classGuaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PCNMEA 0183 & NMEA 2000Automated health and performance monitoringSilent mode (transmit-off) functionEnhanced RF screening to protect against electromagnetic interferenceBuilt-in power surge protectionSize (H x W x D): 150 x 115 x 45mmWeight: 385kgOperating temperature: -25°C to +55°CStorage temperature: -25°C to +70°CIngress protection: IPx6 and IPx7Supply voltage: 12V or 24V DCSupply voltage range: 9.6V - 31.2V DCAverage current (at 12V): 170mAAverage current (at 12V) (wireless off): 135mAPeak current: 2AAverage power consumption (at 12V): 2.0 WAverage power consumption (at 12V) (wireless off): 1.6WGalvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna portVHF antenna: SO-239GNSS: TNCPower: 12-way circular multipoleNMEA 2000: 5-way Micro-C connectorUSB: USB Micro-BNMEA 0183: 2 x bi-directional portsNMEA 2000: NMEA 2000 Ed 3.101, LEN=1USB: PC virtual com port for NMEA 0183 dataWiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)Bluetooth: BT Classic 4.0, 7 concurrent connectionsAIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008Environmental standards: IEC 60945 Ed. 4Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0NMEA 2000: NMEA 2000 Ed 3.101GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)Channels: 72Internal/external antenna: Internal or optional external antennaTime to first fix from the cold start: 26sVDL access scheme: CSTDMAOperating frequency: 156.025MHz - 162.025MHzChannel bandwidth: 25kHzReceivers/transmitters: 2 x receivers, 1 x transmitterAIS receiver sensitivity (20% PER): -111dBmAIS transmitter power: 2W (+33dBm)Indicators: Power, transmit timeout, error, silent mode1 x AIS transceiver1 x Power and data cable (2M)1 x FLEXI-FIT™ mounting bracketComplete with screws & optional fixing tape
