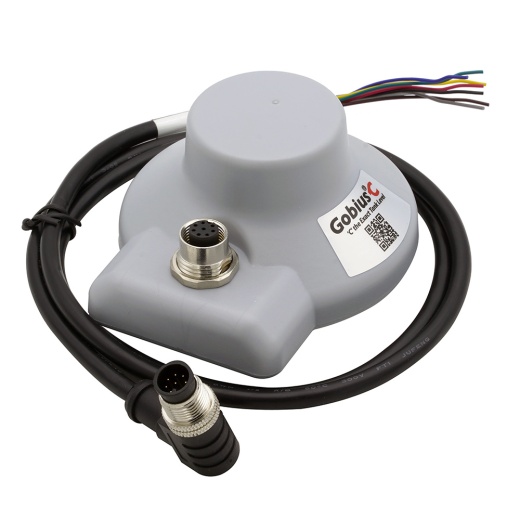

Gobius C External Fluid Level Sensor/Tank Monitor
Plug and play installation. No disassembly of the tank is needed. Measures from the top, never a risk of leakage. Complete system, everything included; sensor, cable, 3M cleaning wipe, and an extra 3M sensor tape. Handles voltage of 12-24 Volts. The sensor is mounted in the same simple way as other Gobius products but on the top of the tank. Max. tank depth is 2 meters. Can be connected to control systems and analog instruments such as KUS, VDO, WEMA, and Faria (10-190 Ohm, 240-33 Ohm, 4-20 mA, and 0-5 V). In addition, there is two individual on/off outputs to signal when the tank is empty and full. Installation is done from your phone via Bluetooth. The app is available in English, French, German, Italian, Spanish, and Swedish.
Features:
Measurement Functions:
Specifications:
Software:
Suitable for all types of liquidsPlug-and-play installationAll settings are done automaticallyBuilt-in Tank CalculatorBuilt-in wave motion reductionNo need for removing the tankReading through plastic tankNo tank wall thickness limitAdapted for standard holes in metal tanks (1,25″ SAE 5)No cleaning inside the tank is neededNo maintenanceMeasuring range, 0-2000 mmMeasuring interval, 1 secondResolution: 1 mmAccuracy: +/- 2-3 mm Tank Geometries:Rectangular, Irregular, Vertical Cylindric, Horizontal CylindricThe input voltage, 9-28 V DCConnector, Female 8 pinsTwo digital outputs (level alarms)4-20 mA (galvanically insulated)Outputs, 10-180 & 240-33 OhmOutput, 0-5 VSensor LED shows active/measuringInput voltage, 9-28 V DCPower consumption, 10 mABuilt-in Bluetooth, version 5.0Built-in temperature sensorBuilt-in accelerometerBuilt-in micro radar sensorMax voltage: 30 VMax current: 500 mABluetooth turns offSensor Facts:Weight, 65 gramDimensions, high 65 mm, width 95 mmSensor height incl adapter metal tank, 75 mmCable length, 1 mConnector on the sensorSensor material, ABSColor, silverBluetooth, version 5.0Waterproof (IP44)App for iOS, Android phones, and Windows PCInstallation / change / removalCorrect level calculation, incl (% and liters)Bluetooth, version 5.0Turn on/off BluetoothTwo digital outputs, four statesDisplay on the phoneBuilt-in test functionsBuilt-in support function
