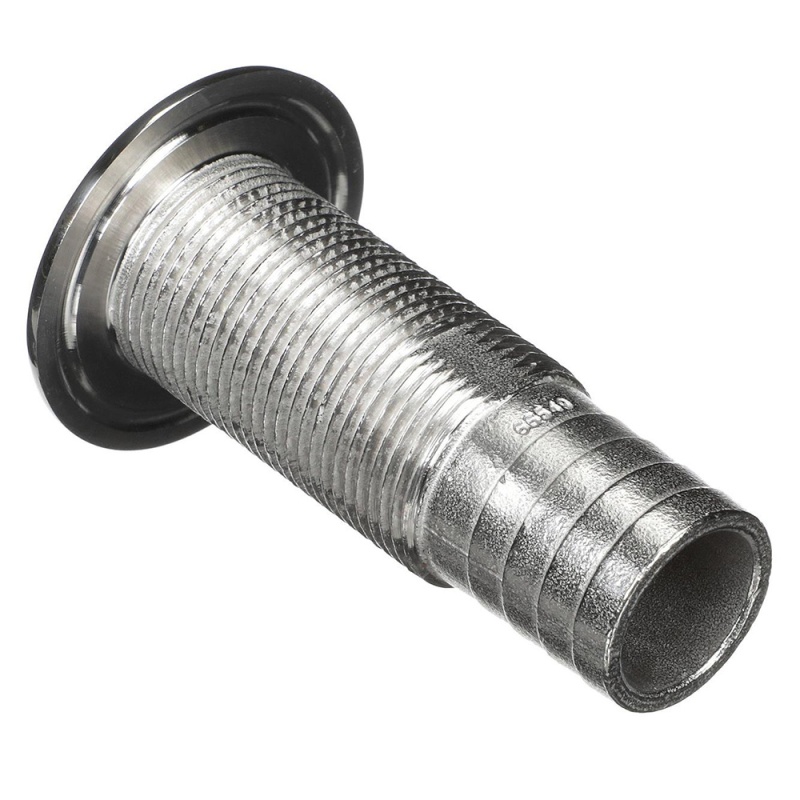

Stainless Steel Thru-Hull Standard Straight Barbed - 1-1/8" Inner Diameter
Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?
Rugged Stainless Construction:
Faster, Simpler Installation:
Stainless Steel Straight Thru-Hulls, Barbed
Specifications:
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistanceAll visible areas are polished to a mirror finish, then passivate each part for additional protectionThick steel sidewalls withstand continual stress and hose flexingEach Thru-Hull is available with a new silicone gasketA channel under the flange holds a bead of sealant, making it easier to apply a trouble-free sealAll models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hullThe barbed tail ends provide plenty of room to hold multiple clampsStandard Thread model has a full-length thread for thick hulls and easy tighteningHose size: (inch) 1-1/8" inner diameterFlange Diameter: (inch) 2-1/4"Thread O.D. (outside diameter): (inch) 1-3/8" Thread Length: (inch) 2-3/8"Barb Length: (inch) 1-1/4"Total Length: (inch) 3-7/8"Install Hole Saw Size: (inch) 1-1/4" Thread NPSM: (inch) 1"Max Hull Thickness: (inch) 1-3/4"
