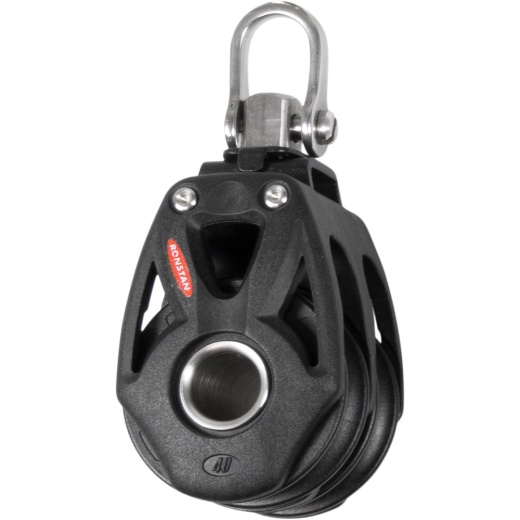

Ronstan Series 40 Orbit Bb Double Block W/Swivel & Shackle

SKU: CWR-97312
Out of stock
Out of stock
Unit Price
Quantity
US$ 109.33
Out of stock
Options
Brand
Barcode
9316800624782
Description

Series 40 Orbit BB Double Block with Swivel & Shackle

The Series 40 ball-bearing Orbit Blocks™ provides the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fiber reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability. As well as traditional single swivel blocks, the range includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is highly versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans. Series 40 Orbit Blocks™ are fitted with our carbon-reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and adjustable for setting your preferred cleating angle. Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range. High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.

Features:

Applications

Specifications:

  • Class-leading dynamic and static load ratings
  • Lightweight, yet strong. Toughened, glass fiber reinforced nylon replaces stainless steel straps used in our traditional utility blocks
  • Low friction 2-stage ball bearing system for efficient and effortless trimming
  • Soft attachment, lashing and traditional swivel shackle head options
  • Low profile and compact
  • High performance cleating
  • Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft)
  • Halyard, vang and backstay applications on boats to 9m (30ft)
  • Control line applications on larger yachts
  • Sheave Ø: 1-9/16 in.
  • Max. Rope Ø: 3/8 in.
  • Pin Ø: 5/32"
  • M.W.L.: 1320 lb.
  • B. L.: 2650 lb.
  • Weight: 4.2 oz.
  • Shipping specs
    Shipping weight
    0.25 lbs
    Shipping dimensions
    2" x 2" x 4"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
